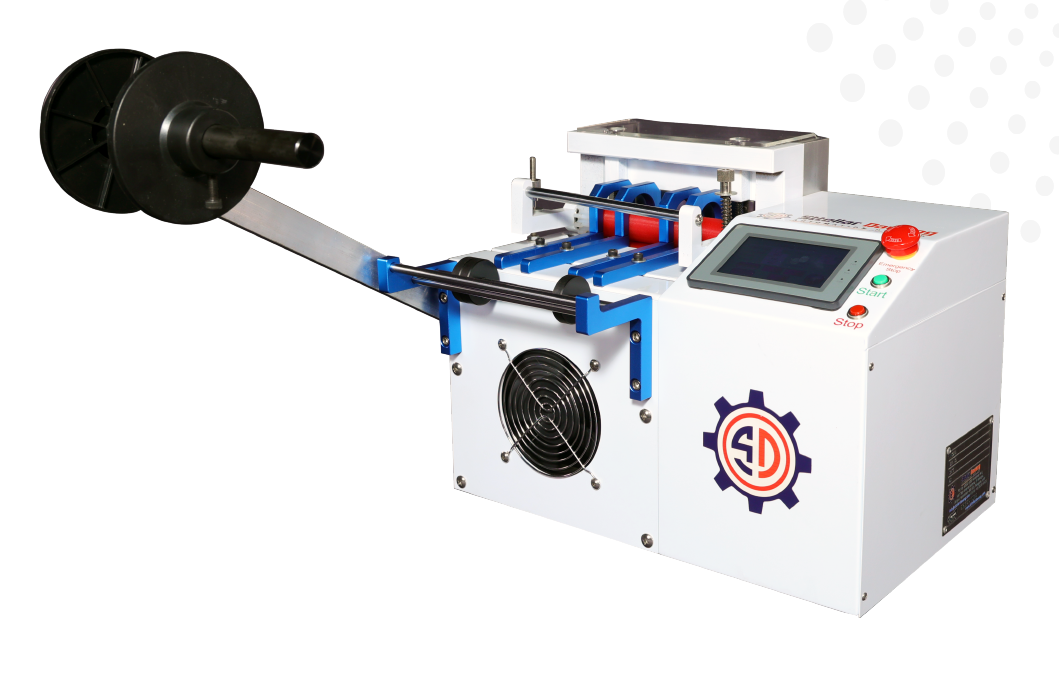

All-electric, PLC-controlled sleeve cutting machine with touchscreen HMI for fast job setup and repeatable production. A hybrid stepper-driven feeder delivers smooth, high-speed transport through adjustable infeed/outfeed guides to handle multiple materials and diameters without jacket damage. The roller-feed mechanism maintains consistent traction; the rigid frame and robust cutting unit ensure clean, repeatable cuts in continuous duty.
Operators set cut length, batch size, and feed parameters on the HMI; recipe storage supports standardized changeovers. The design emphasizes reliability and low maintenance for high-volume operation.
Key Features
• Durable all-electric design with fast, smooth feeding and multi-material capability
• Easy touch-screen setup ensures precision cutting, fine control, and minimal waste for reliable high-volume performance
Technical Details
Technical Parameters
Specifications
Operating interphase
HMI ( Touch Screen)
Maximum material width
160.0 mm
Maximum Tube Outer Dia
40.0 mm
Maximum Cable Outer Dia
60.0 mm
Maximum Tube Thickness
8.0mm
Maximum Feed Rate
1.0 meter per second
Pulling force
80N
Maximum length
1mm to 9999 mm
Length Increment
0.1 mm
Length Accuracy
±0.5MM ( L x 0.02%) Depends on the materials
Program memory capacity
Up to 100 numbers with all processing parameters
Noise Level
< 70 db
Power
170 watts
Power Supply
230 to 240V (50/60 Hz) (optional 110V)
Dimensions (L x W x H)
300 x 300 x 450 mm
Net Weight
30 kgs
Output Range (approx)
7000 numbers per hour at 100 mm length and single line feed
