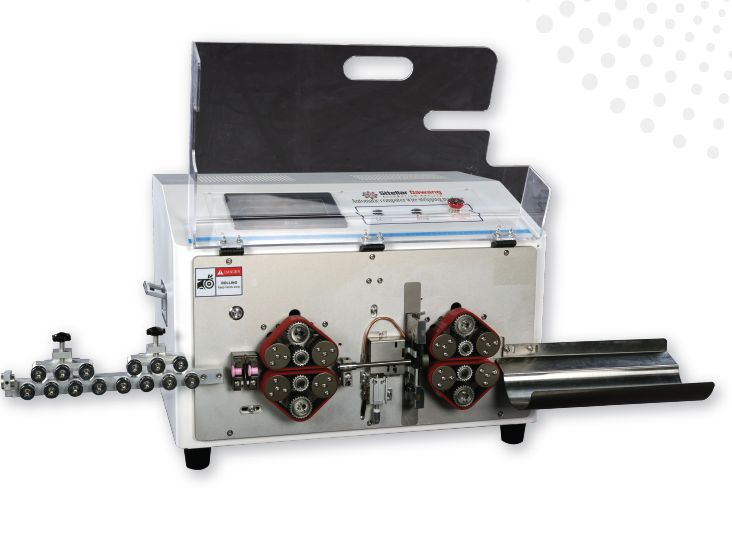

Automatic Multicore Cable Cutting & Stripping Machines (Model: SD-16MCT)

Automatic Multicore Cable Cutting & Stripping Machines (Model: SD-16MCT)

The SD-16MC is a fully automatic machine designed for cutting and stripping both the jacket and inner cores of multi-core sheathed cables. It supports processing cables with up to 7 cores, making it ideal for applications requiring high precision and efficiency

Supports heavy-duty cables, scratch-free feeding, advanced positioning, and multiple optional accessories for enhanced productivity.

Technical Specifications

Technical Parameters

Specifications

Available Wire Size

Round sheathed cable and multi-core round cable

Max Supported Cores

7 cores

Conductor Cross-Section *

1-16mm²

Cutting Length

1-99999mm

Cutting Length Tolerances

≤(0.002 × L) mm

Jacket Stripping Length *

Head: 10-120mm; Tail: 10-80mm

Inner Core Stripping Length *

Head: 1-50mm; Tail: 1-50mm

Conduit Diameter

Φ10mm

Production Rate

One core wire: 2300 pcs/h; Multi-core: 800 pcs/h

Display Screen

7-inch touch screen

Wire Feed Method

Belt feeding

Drive Method

16-wheel drive

Power Supply

220V / 110V

Power

1200W

Weight

95kg

Dimensions

60 × 50 × 62cm
