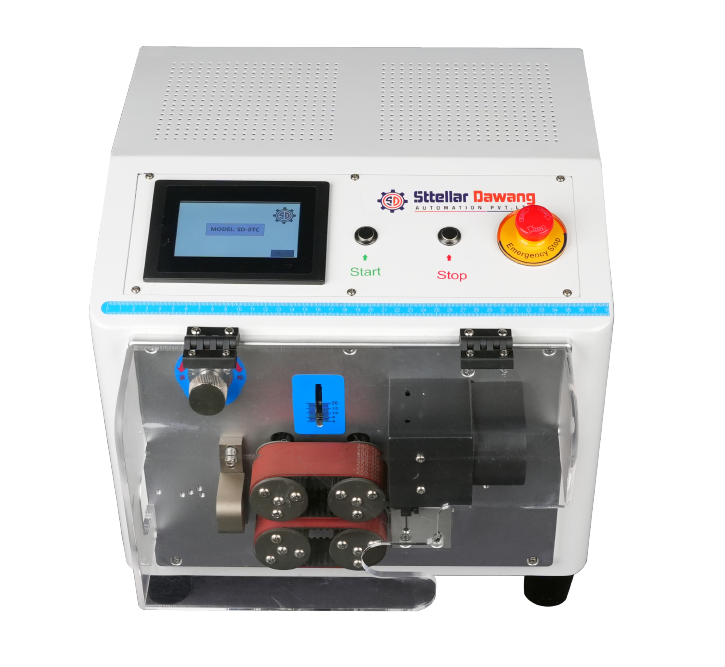

Precision corrugated tube cutting machines designed for slit, re-sealable, and muffed tubes. Ideal for protecting cables and harnesses, they serve industries like wire harness, hose, PVC/rubber parts, high-volt-age cabinets, and home appliances.
Key Features
• For corrugated tubes 5–40 mm OD
• The machine ensures precise crest cutting with short cycle times
• Features include a quick-change guide system
• Standard belt feeding
• A programmable rotary cutting module for efficient slitting.
Technical Specifications
Technical Parameters
Specifications
Operating interphase
HMI (Touch Screen)
Minimum Tube Outer Dia
5.0 mm
Maximum Tube Outer Dia
40 mm
Slitting Blade Diameter
100 mm
Slitting Blade Speed
1400 RPM
Maximum Feed Rate
1.0 meter per second
Pulling force
200N
Maximum length
10mm to 9999 mm
Length Increment
0.1 mm
Length Accuracy
±0.5MM ( L x 0.02%) Depends on the materials
Program memory capacity
Upto 100 numbers with all processing parameters
Noise Level
< 70 db
Power
2.0 KW
Power Supply
230 to 240V (50/60 Hz) (optional 110V)
Dimensions (L x W x H)
450 x 500 x 700 mm
Net Weight
70 kg
Output Range (approx)
4800 numbers per hour at 100 mm length and single line
