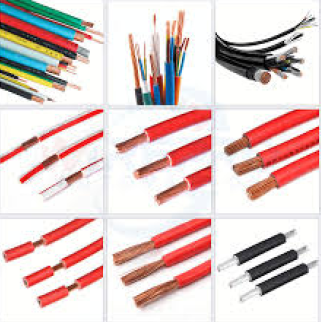

The SDRS-2010 is a semi-automatic rotary stripping machine designed for efficient and precise stripping of a wide range of cables, including PVC wires, solid core, single stranded, rubber wires, multi-core cables, computer core wires, telephone wires, and battery cables.
It features an HMI touchscreen interface for intuitive operation and supports high-precision stripping up to 50 sq.mm wire size.
Key Features
• HMI (Touchscreen) Control: User-friendly interface for easy programming and operation.
• Supports Multiple Cable Types: PVC, solid core, single stranded, rubber wires, multi-core cables.
• High Precision Rotary Stripping: Accurate depth and speed control for clean stripping.
• Digital Input Settings: Stripping depth, speed, and rotation time can be programmed easily.
• Pneumatic Wire Clamping: Ensures firm grip during operation for consistent quality.
Technical Specifications
|
Parameter
|
Specification
|
|
Operating interphase
|
HMI ( Touch Screen)
|
|
Supported Wire Types
|
Pvc, Solid Core, Single Stranded & Rubber wires, Multicore
|
|
Minimum cable outer dia
|
4.0 mm
|
|
Maximum cable outer dia
|
20 mm
|
|
Cable size
|
4 sq.mm to 50 sq.mm
|
|
Maximum Stripping length
|
100.0 mm
|
|
Length Accuracy
|
±0.2MM ( L x 0.04%) Depends on the materials
|
|
Noise Level
|
< 70 db
|
|
Air supply
|
6.0 bar Dried and filtered air
|
|
Power Supply
|
230 to 240V (50/60 Hz)
|
|
Function mode
|
Foot Pedal / Push Button
|
|
power consumption
|
200 w
|
|
Cylinder Stroke
|
120 mm
|
|
Dimensions (L x W x H)
|
1000 × 330 × 430 mm
|
|
Net Weight
|
90 kg
|
|
Output Range (approx)
|
1200 – 1500 pcs/hour (depends on operator skill)
|
|
Uninyvin Cable Size
|
12 to 0
|
