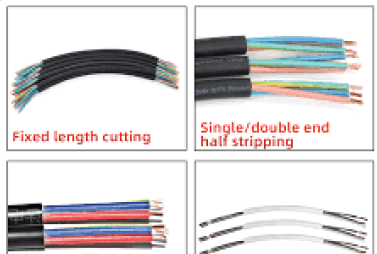

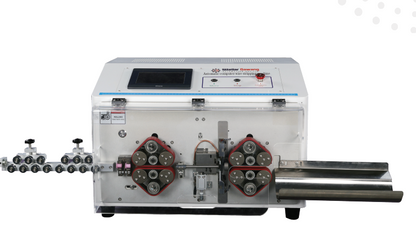

The SD-35MC is a fully automatic machine designed for cutting and stripping both the jacket and inner cores of multi-core sheathed cables.
Key Features
• Supports heavy-duty cables
• scratch-free feeding
• Advanced positioning
• Multiple optional accessories for enhanced productivity
Technical Specifications
|
Technical Parameters
|
Specifications
|
|
Available Wire
|
Round sheathed cable
|
|
Max Supported Cores
|
7 cores
|
|
Conductor Cross-Section *
|
1-35mm²
|
|
Cutting Length
|
1-99999mm
|
|
Cutting Length Tolerances
|
≤(0.002 × L) mm
|
|
Jacket Stripping Length *
|
Head: 10-120mm; Tail: 10-80mm
|
|
Inner Core Stripping Length *
|
Head: 1-50mm; Tail: 1-50mm
|
|
Conduit Diameter *
|
Φ16mm
|
|
Production Rate
|
One core wire: 2300 pcs/h; Multi-core: 800 pcs/h
|
|
Display Screen
|
7-inch touch screen
|
|
Wire Feed Method
|
Belt feeding
|
|
Drive Method
|
16-wheel drive
|
|
Power Supply
|
220V / 110V
|
|
Power
|
1200W
|
|
Weight
|
95kg
|
|
Dimensions
|
60 × 50 × 62cm
|
