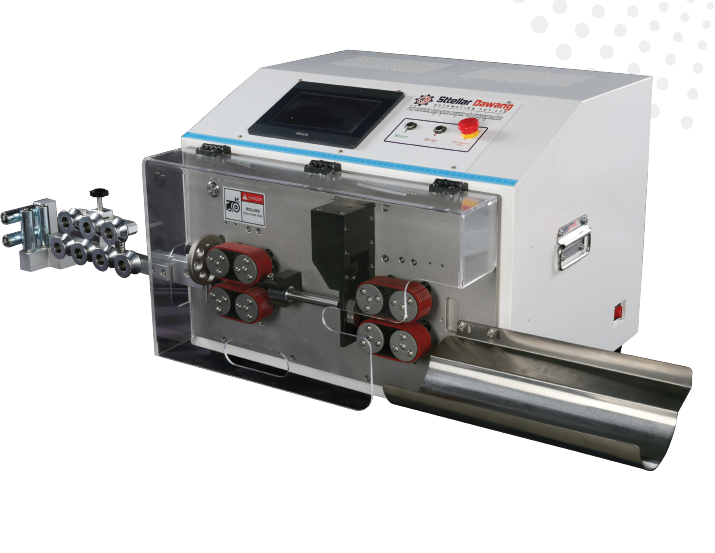

Processes 0.5–16mm² wires with precise cutting, up to 15 intermediate strips, 4-wheel drive, roller feed, LCD control, and high-speed output.
Key Features
• High-capacity machine
• For 0.5–16 mm² wires
• With cutting lengths up to 9999.9 mm
• Intermediate stripping (15 sections)
Technical Specifications
|
Technical Parameters
|
Specifications
|
|
Model
|
SD-16
|
|
Wire Cross Section
|
0.5 – 16 mm²
|
|
Electrical Connection
|
110V / 220V, 50Hz / 60Hz
|
|
Wire Feed Method
|
Roller Feeding
|
|
Power
|
300 W
|
|
Operation Interface
|
4.3-inch English switching touch screen display
|
|
Machine Dimensions (L × W × H)
|
460 × 470 × 325 mm
|
|
Wire Length Range
|
1 – 9999 mm
|
|
Stripping Length
|
Front End: 0 – 30 mm; Rear End: 0 – 15 mm
|
|
Length Accuracy
|
± (0.002 × L) mm
|
|
Intermediate Peeling Capability
|
Up to 16 times
|
|
Maximum Conduit Inner Diameter
|
Φ6 – 14 mm
|
|
Compatible Wire Materials
|
PVC, Teflon, Braided, Fiberglass
|
|
Blade Material
|
Hard Tungsten Steel
|
|
Transport Speed (100 mm wire)
|
(For L = 100 mm) 4000 – 5000 pieces/hour
|
|
Drive Mode
|
Four-wheel drive with silent hybrid stepper motor
|
|
Weight
|
52 kg
|
