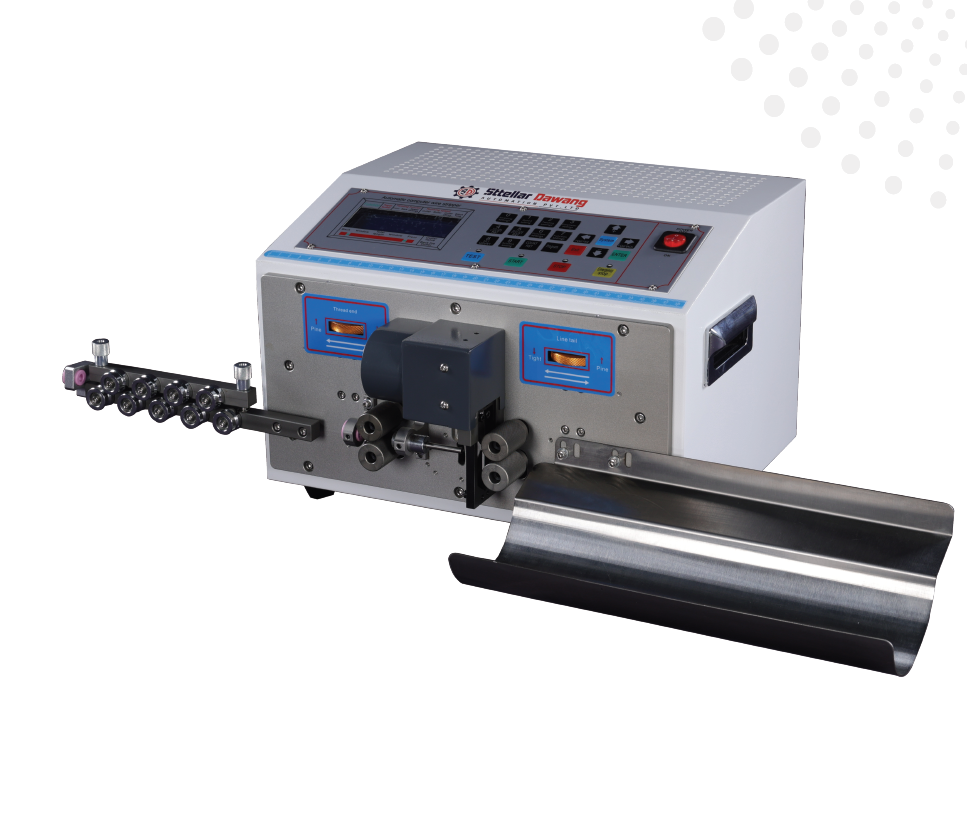

The Model 2.5 provides efficient and precise cutting and stripping for thin wires up to 2.5 mm². Compact and user-friendly, it ensures consistency and reliability in wire processing.
Key Features
• Precise thin wire cutting/stripping
• Adjustable lengths
• User-friendly interface
• Durable, safe
• Compact

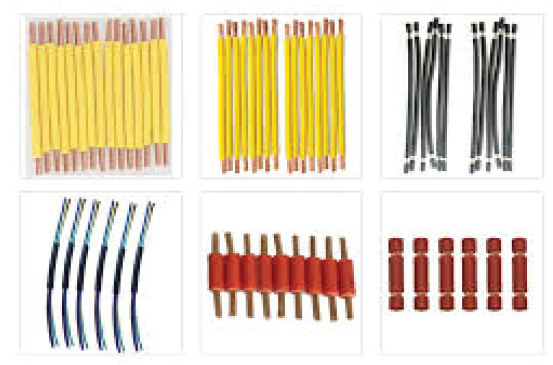

• Suitable for various wire types.
Technical details
Technical Parameters
Specifications
Wire Cross Section
0.2 – 2.5 mm²
Electrical Connection
110V / 220V, 50Hz / 60Hz
Power
300 W
Operation Interface
4.3-inch Touch screen display
Machine Dimension
460 × 470 × 325 mm
Wire Length Range
1 – 9999 mm
Strip Length
Front end: 0 – 30 mm; Rear end: 0 – 8 mm
Length Accuracy
± (0.002 × L) mm
Intermediate Peeling Times
16 times
Max Conduit Inside Diameter
6 mm
Wire Material
PVC, Teflon, Braided, Fiberglass wire
Blade Material
Hard tungsten steel
Transport Speed
(L = 100 mm) 4000 – 5000 pieces/hour
Driving Mode
Four-wheel drive (silent hybrid stepper motor, 0.1 mm forward per step)
