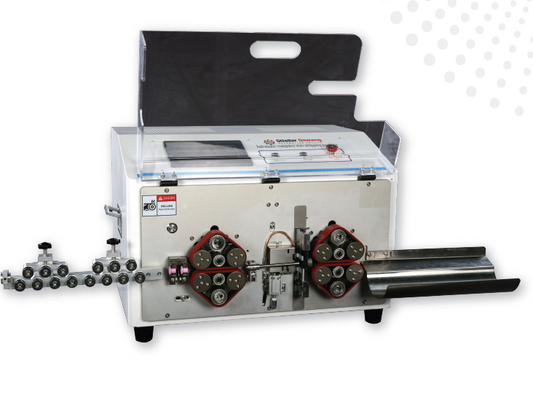

Fully automatic cutting, double-end, and middle stripping of 0.5–6mm² wires. Touchscreen control, durable tungsten blades, 4000–5000 pcs/hour, ideal for PVC, Teflon, braided, and fiberglass wires.
Key Features:
• Fully automatic cutting
• Double-end
• Middle stripping of 0.5–6mm² wires
• Touchscreen control
• Durable tungsten blades
• Up to 4000–5000 pcs/hour
Technical Specifications
|
Technical Parameters
|
Specifications
|
|
Machine Type
|
Fully Automatic Wire Cutting, Stripping & Middle Stripping Machine
|
|
Functions
|
Wire Cutting, Double-end Stripping, Middle Stripping
|
|
Applicable Wire Cross Section
|
0.5 mm² – 6 mm²
|
|
Electrical Connection
|
110V / 220V, 50Hz / 60Hz
|
|
Air Supply
|
0.4 – 0.7 MPa (Clean and Dry Air)
|
|
Power Consumption
|
300 W
|
|
Operation Interface
|
4.3-inch Touch Screen Display
|
|
Machine Dimensions (L × W × H)
|
460 × 470 × 325 mm
|
|
Wire Length Range
|
1 – 9999 mm
|
|
Stripping Length
|
Front End: 0 – 30 mm; Rear End: 0 – 15 mm
|
|
Length Accuracy
|
± (0.002 × L) mm
|
|
Intermediate Peeling Capability
|
Up to 16 times
|
|
Maximum Conduit Inner Diameter
|
6 mm
|
|
Compatible Wire Materials
|
PVC, Teflon, Braided, Fiberglass
|
|
Blade Material
|
Hard Tungsten Steel
|
|
Transport Speed (100 mm wire)
|
4000 – 5000 pieces/hour
|
|
Drive Mode
|
Four-wheel drive with silent hybrid stepper motor
|
|
Weight
|
40 kg
|
