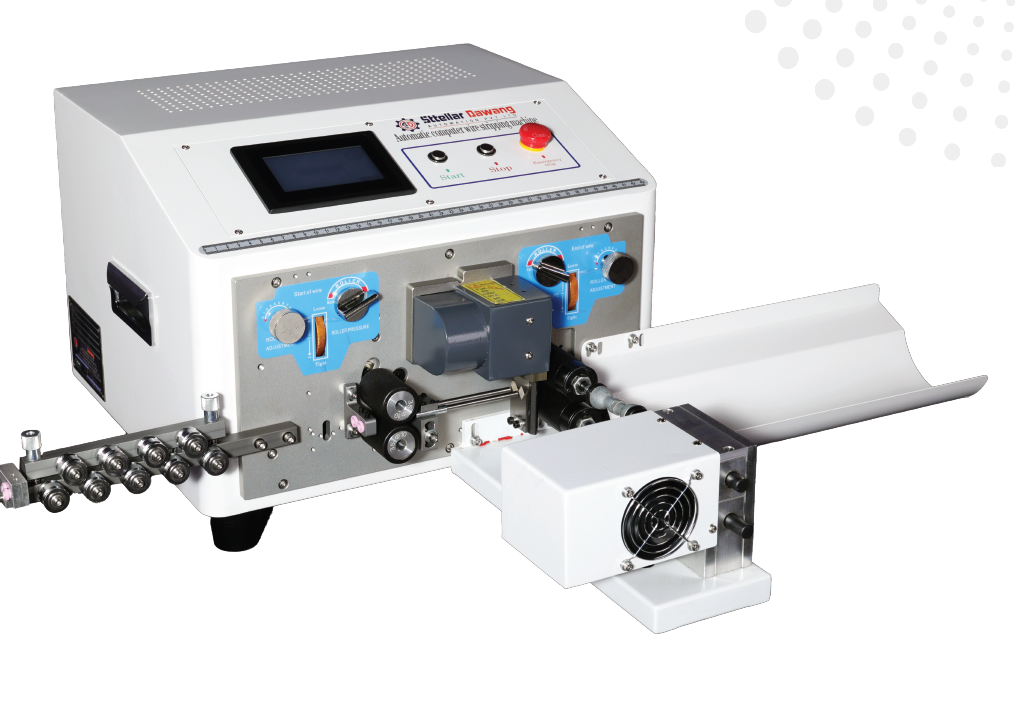

The 2.5TR automates cutting, stripping, and twisting of wires up to 2.5 mm². Designed for automotive and electronics harness production.
Key Features:
• Fully automatic cutting, stripping & twisting
• Boosts speed and reduces labor
• Supports various cable types
• Touchscreen interface
Technical Details
|
Technical Parameters
|
Specifications
|
|
Wire Cross Section
|
0.2 – 2.5 mm²
|
|
Features
|
One wire stripping & twisting
|
|
Electrical Connection
|
110V / 220V, 50Hz / 60Hz
|
|
Power
|
300 W
|
|
Operation Interface
|
4.3-inch Touch screen display
|
|
Machine Dimension
|
460 × 470 × 325 mm
|
|
Wire Length Range
|
1 – 9999 mm
|
|
Strip Length
|
Front end: 0 – 30 mm; Rear end: 0 – 8 mm
|
|
Length Accuracy
|
± (0.002 × L) mm
|
|
Intermediate Peeling Times
|
16 times
|
|
Max Conduit Inside Diameter
|
6 mm
|
|
Wire Material
|
PVC, Teflon, Braided, Fiberglass wire
|
|
Blade Material
|
Hard tungsten steel
|
|
Transport Speed
|
(L = 100 mm) 4000 – 5000 pieces/hour
|
|
Driving Mode
|
Four-wheel drive (silent hybrid stepper motor, 0.1 mm forward per step)
|
