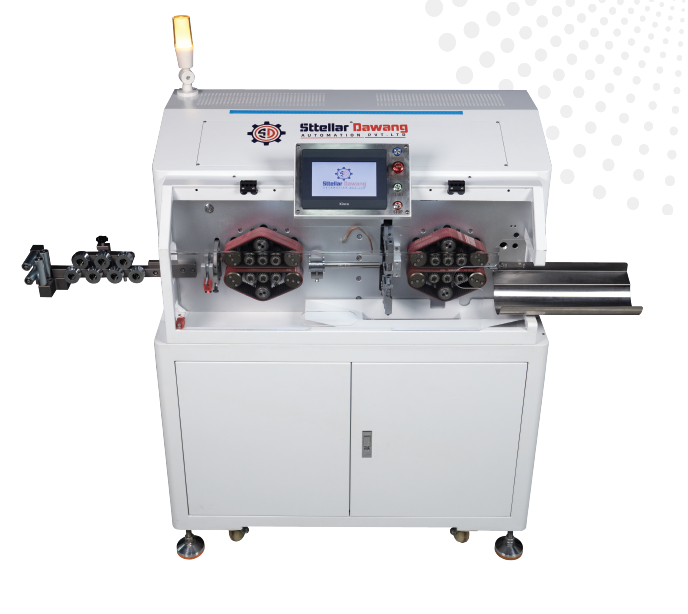

Automatic Cable Cutting & Stripping & Twisting Machine (Model: SD-180)
Automatic Cable Cutting & Stripping & Twisting Machine (Model: SD-180)
Heavy-duty, fully automatic wire cutting and stripping machines designed for large-diameter wires and cables. They deliver high precision, speed, and flexibility for industrial-scale processing.
Supports large wire sizes up to 150 mm² with high-precision cutting and stripping. Equipped with 32-wheel drive and belt feeding for stable, fast processing. User-friendly 7-inch touch screen with customizable stripping options.
Technical Specifications
|
Technical Parameters |
Specifications |
|

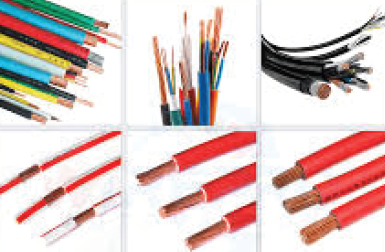

Available Wire Size |
AWG7 – 180mm² |
|
Conductor Cross-Section |
10-180mm² |
|
Cutting Length |
1-99999.99mm |
|
Cutting Length Tolerances |
≤(0.002×L) mm |
|
Stripping Length* |
Head 1-800mm; Tail 1-400mm |
|
Conduit Diameter* |
Φ32mm |
|
Production Rate |
1000-1800 pcs/h |
|
Display Screen |
7-inch touch screen |
|
Wire Feed Method |
Belt feeding |
|
Drive Method |
32 wheels drive |
|
Power Supply |
220V/110V |
|
Power |
6900W |
|
Weight |
220kg |
|
Dimensions |
150×76×134cm |
