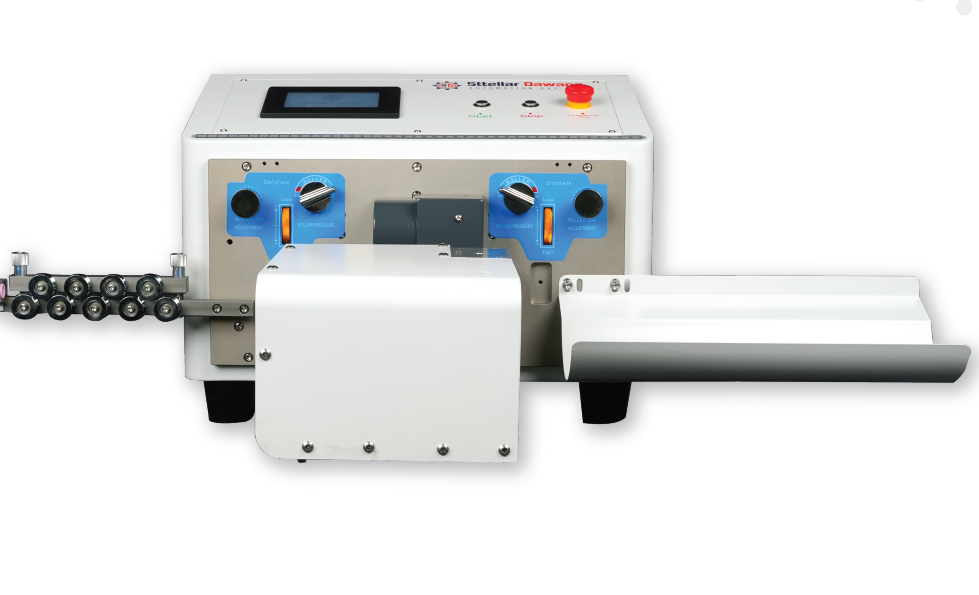

Fully automatic cutting, stripping, and twisting of 0.1–6mm² wires. Ideal for automotive and appliance wire harnesses, improves speed, and saves labor.
Key Features
• Fully automated
• Easy to use
• Handles various cables
• Boosts speed
• Reduces labor in electronics
• Automotive industries
Technical Specifications
Technical Parameters
Specifications
Wire Cross Section
0.2 – 6.0 mm²
Features
One wire stripping & twisting
Electrical Connection
110V / 220V, 50Hz / 60Hz
Power
300 W
Operation Interface
4.3/6 inch C Touch screen display
Machine Dimension
460 × 470 × 325 mm
Wire Length Range
1 – 9999 mm
Strip Length
Front end: 0 – 30 mm; Rear end: 0 – 8 mm
Length Accuracy
± (0.002 × L) mm
Intermediate Peeling Times
16 times
Max Conduit Inside Diameter
6 mm
Wire Material
PVC, Teflon, Braided, Fiberglass wire
Blade Material
Hard tungsten steel
Transport Speed
(L = 100 mm) 4000 – 5000 pieces/hour
Driving Mode
Four-wheel drive (silent hybrid stepper motor, 0.1 mm forward per step)
