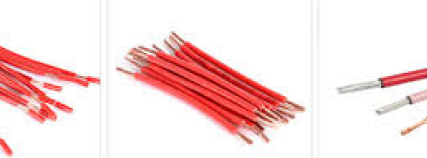

ELECTROPNEUMATIC STRIPPER AND TWISTER FOR 0.25 TO 2.5 SQ.MM (Model: SDP-10T)

ELECTROPNEUMATIC STRIPPER AND TWISTER FOR 0.25 TO 2.5 SQ.MM (Model: SDP-10T)

High-precision wire stripper with ±0.01 mm tolerance in a compact benchtop design. A universal blade system enables quick changeovers and consistent stripping across multiple sizes, making it ideal for multi-core and flat cables in high-mix production.

Key Features

• Small Wire Stripping Machine – High-speed machine for very small diameter wires.

• Suitable for discrete, solid, single-stranded, single-core, rubber, PVC, PUR, and PTFE wires.

Technical Specifications

Parameter

Specification

Operating interphase

HMI ( Touch Screen)

Type

Pneumatic

Wire Size Range

0.3–2.5 mm²

Max. Outer Diameter

3.2 mm

Stripping Length

1–18 mm

Partial Strip

Yes

Pull-off Length

6–20 mm

Power Supply

AC 220V, 50/60Hz

Weight

5 kg

Dimensions (L×W×H)

370 × 90 × 180 mm
