Where design meets manufaturing power.

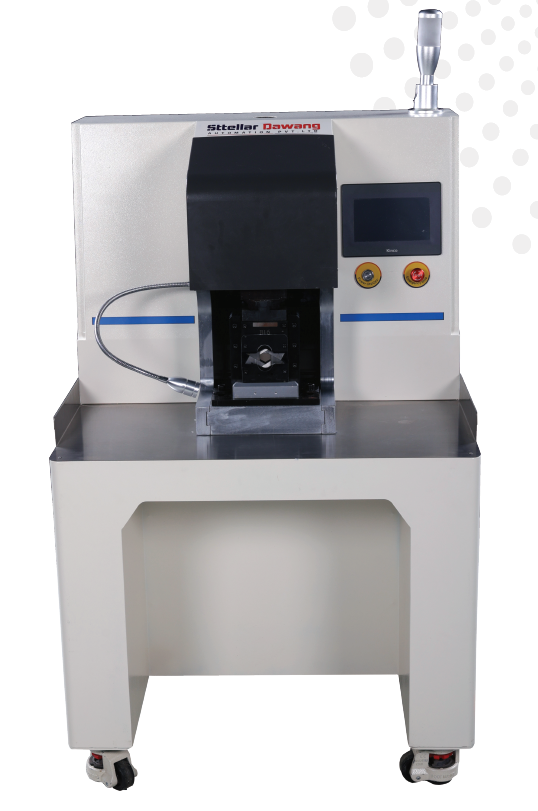

Heavy-duty, servo-driven press with adjustable stroke, micron-level accuracy, sequence crimping, wide applicator compatibility, and user-friendly operation for maximum precision and versatility.
• Servo-driven control
• Micron-level crimp height adjustment
• Configurable stroke
• Sequence crimping
• Wide applicator compatibility
• Multiple operation modes
• Low noise and stable output
Technical Parameters
Specifications
Power Input
Single Phase 220 V AC 50 Hz
Motor (kW)
3
Control
Electronic
Tonnage (Ton)
15/20
Terminal Sheet Thickness (mm)
5
Wire Size (Sq. mm)
80/120
Stroke
Adjustable
Shut Height
160 / 190 / 212 mm
Weight (Kg)
565
Dimension (L × B × H) (mm)
680 × 750 × 1100
