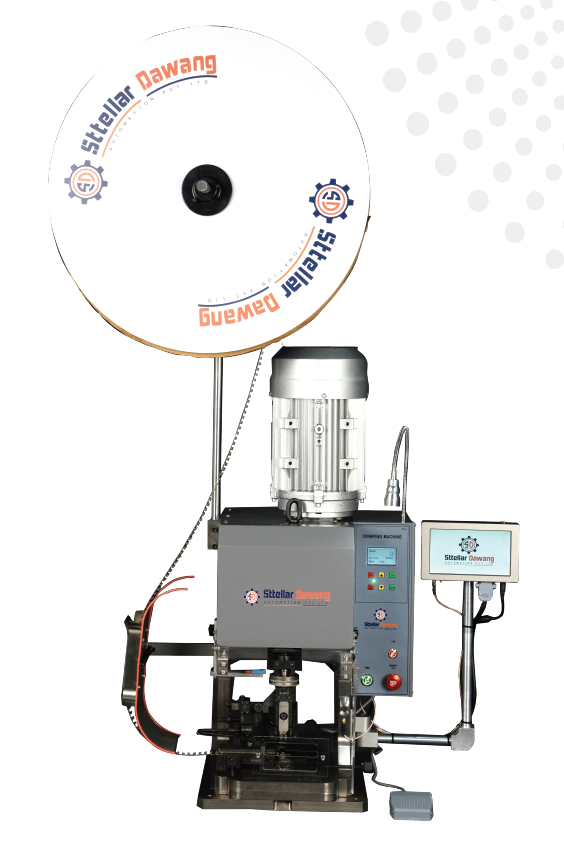

Semi-automatic, foot-operated machine for crimping reeled terminals. Microprocessor-controlled, durable steel construction, low maintenance, and user-friendly soft-touch control panel.
Key Features
• Quiet operation
• Quick-change applicator
• Precision slow mode
• Three-speed options
• Modular control box for easy maintenance
Technical Specifications
|
Technical Parameters
|
Specifications
|
|
Power Input
|
Single Phase 220 V AC 50 Hz
|
|
Motor (kW)
|
3
|
|
Control
|
Electronic
|
|
Tonnage (Ton)
|
8
|
|
Terminal Sheet Thickness (mm)
|
3
|
|
Wire Size (Sq. mm)
|
35
|
|
Stroke
|
40/50 mm
|
|
Shut Height
|
Std: 135.78 mm, Max: 190 mm
|
|
Weight (Kg)
|
150
|
|
Dimension (L × B × H) (mm)
|
400 × 400 × 800
|
