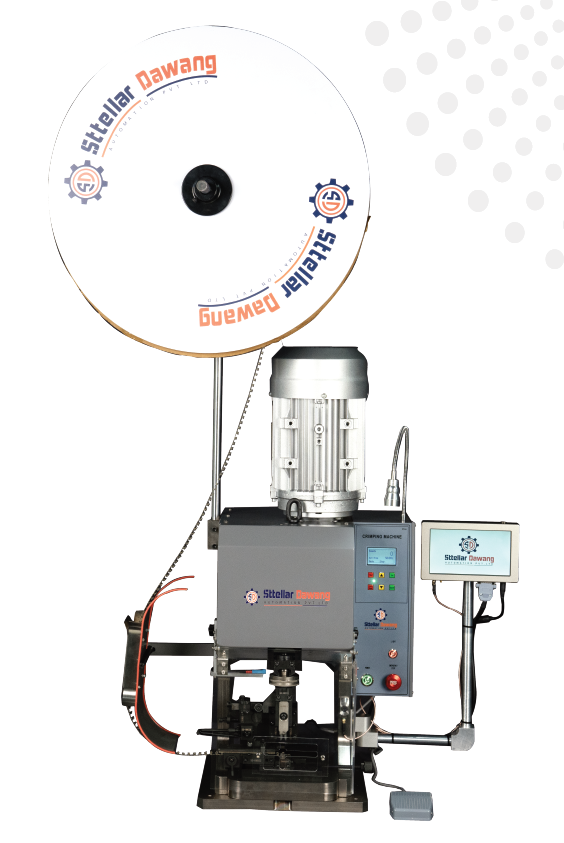

Bench-type, foot-operated, microprocessor-controlled for consistent, reliable crimping. Durable steel construction, user-friendly panel, ideal for various wire processing applications.
Key Features
• Noise-free operation
• Quick-change applicator
• Precision slow mode
• Three speed options
• Modular control box for easy maintenance
Technical Specifications
|
Technical Parameters
|
Specifications
|
|
Power Input
|
Single Phase 220 V AC 50 Hz
|
|
Motor (kW)
|
0.75
|
|
Control
|
Electronic
|
|
Tonnage (Ton)
|
1.5
|
|
Terminal Sheet Thickness (mm)
|
0.5
|
|
Wire Size (Sq. mm)
|
2.0 sq.mm
|
|
Stroke
|
30 / 35 / 40 mm
|
|
Shut Height
|
Std: 135.78 mm, Max: 190 mm
|
|
Weight (Kg)
|
95
|
|
Dimension (L × B × H) (mm)
|
300 × 300 × 700
|
